China Popular Customized Welded Steel Wire Mesh for Fence

Welded steel wire mesh is a mesh product formed by welding metal wires (such as low-carbon steel wire, stainless steel wire, etc.) in a predetermined mesh arrangement at intersections using automated welding equipment. Its core advantages lie in the firm solder joints, no virtual welding, smooth mesh surface, and stable structure. Compared with woven mesh, it has higher overall strength and dimensional accuracy. During the production process, surface treatment can be carried out according to the needs (such as galvanizing, spraying, etc.) to adapt to the usage requirements of different environments.

Jinxuan Steel's steel wire mesh has different specifications, styles, and sizes to choose from, supporting customized services and one-stop solution development, making it your best choice.

    description1

    Production description

    1.Specification parameters

    Wire diameter: 0.5mm-6mm (can be customized to 10mm for special scenarios).
        Fine diameter (0.5-2mm): suitable for decoration, breeding (small poultry), and precision protection;
        Medium diameter (2-4mm): suitable for building plastering, underfloor heating, and general guardrails;
        Coarse diameter (4-6mm and above): suitable for heavy-duty protection (such as factory fences, bridge reinforcement).

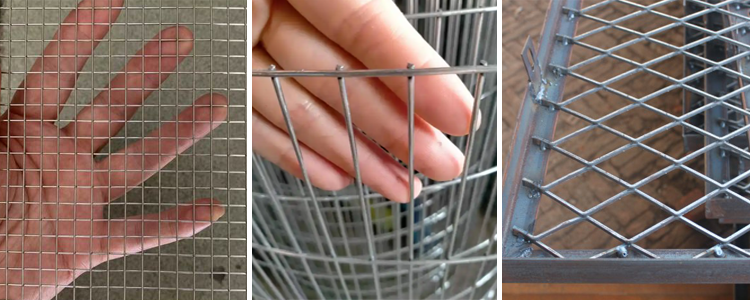

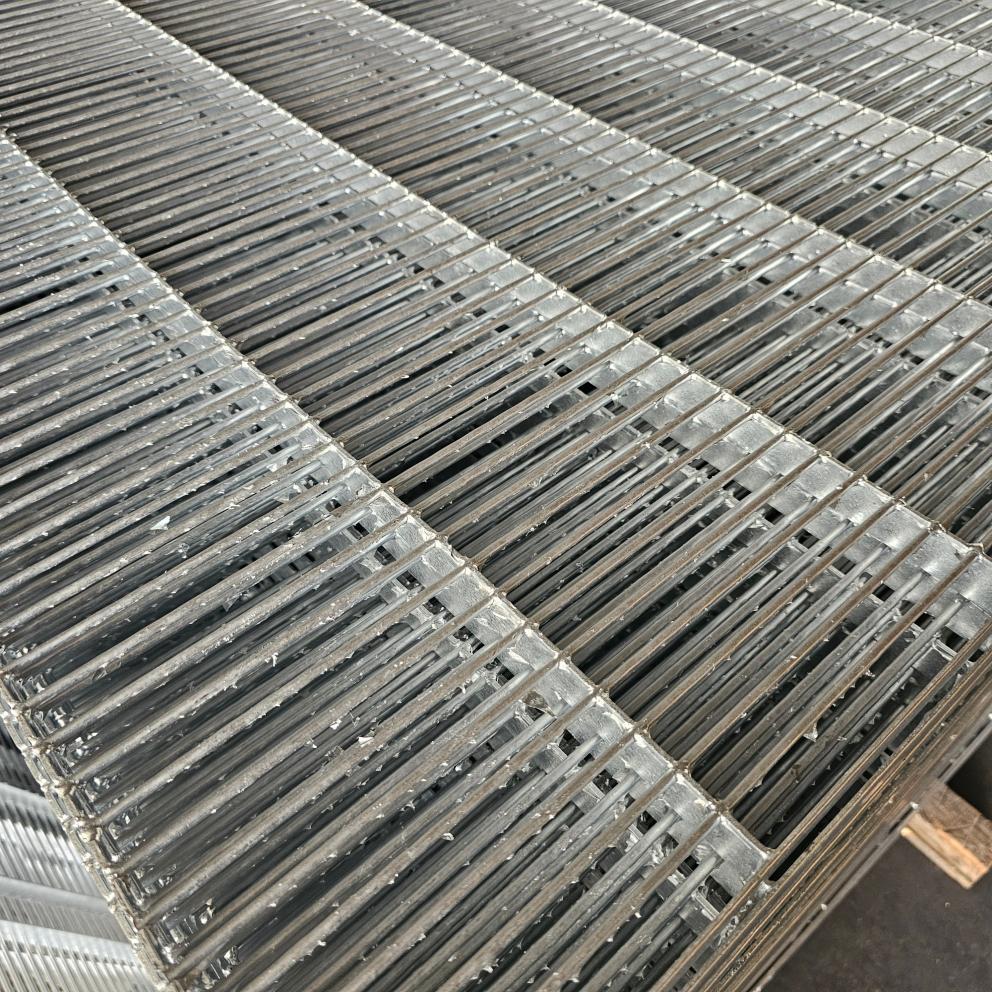

    steel wire mesh

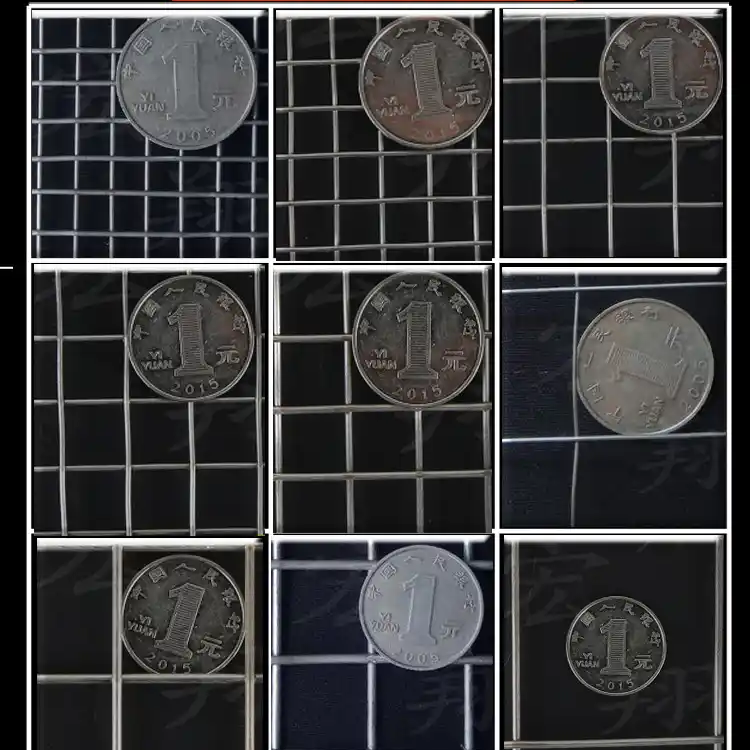

    Mesh hole size: mainly square and rectangular, common specifications:
        Small mesh size: 5x5mm, 10x10mm, 12x12mm (suitable for precision protection and small-scale aquaculture);
        Medium mesh holes: 15x15mm, 20x20mm, 25x25mm (suitable for buildings and general guardrails);
        Large mesh: 50x50mm, 100x100mm, 100x200mm (suitable for large guardrails and equipment protection).
    Mesh size: Conventional sizes are 1x2m, 1.2x2.4m, 1.5x3m, and can be customized with a maximum width of 3m and length of 6m (adjusted according to transportation restrictions).

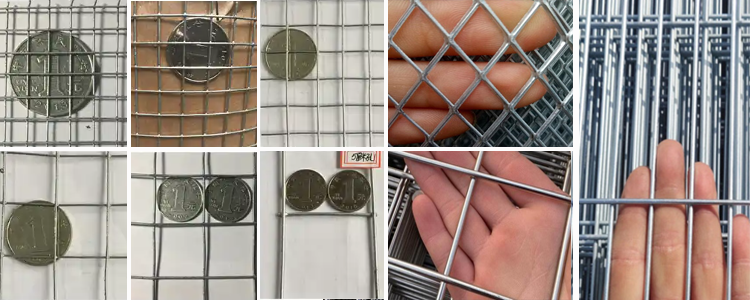

    welded steel wire mesh

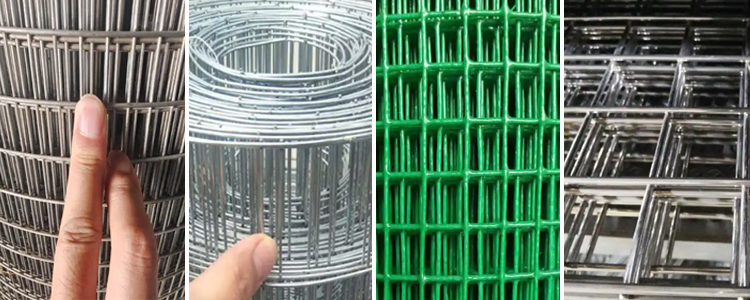

    2. Common styles

    Classified by surface treatment:
        Black wire mesh: without surface treatment, low cost, easy to rust, suitable for short-term indoor scenes (such as temporary isolation);
        Galvanized mesh: divided into hot-dip galvanizing (thick zinc layer, strong corrosion resistance, preferred for outdoor use) and electroplating galvanizing (thin zinc layer, suitable for indoor drying);

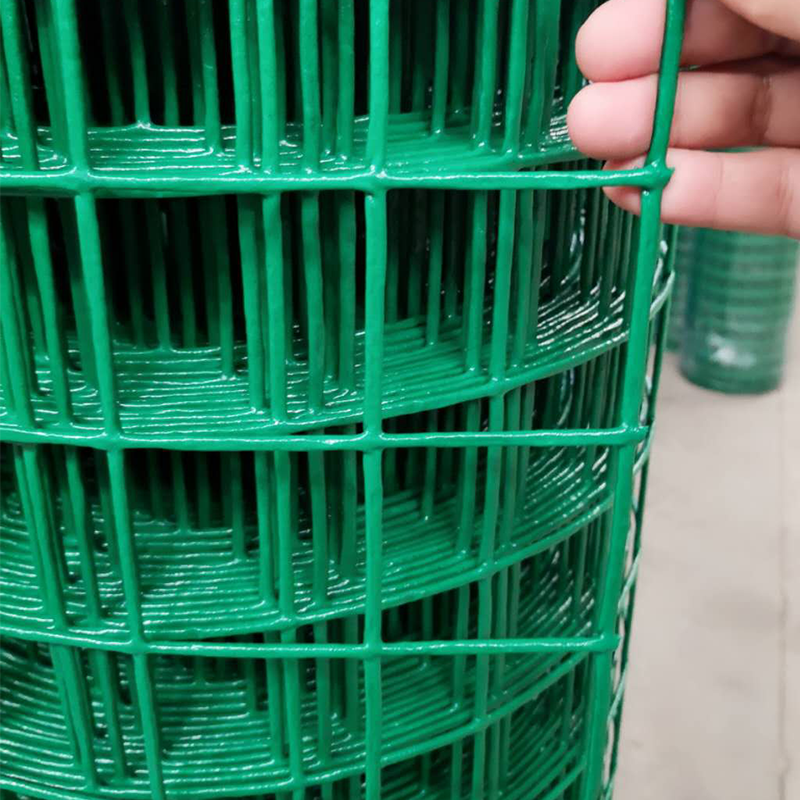

        Spray/dip screen: covered with PVC or powder coating on the surface, with various colors (white, green, blue, etc.), good weather resistance, commonly used for guardrail decoration;
        Stainless steel primary color mesh: The stainless steel material itself is corrosion-resistant, and the mesh surface has a metallic natural color, suitable for clean environments such as food and medical care.

    steel welded wire mesh

    Classified by mesh shape
        Square mesh: The mesh is square (such as 10x10mm, 20x20mm), which is the most widely used, such as building mesh and breeding mesh;
        Rectangular mesh: The mesh holes are rectangular (such as 10x20mm, 20x40mm), with more balanced horizontal/vertical forces, suitable for guardrails and equipment protection;
         Alien mesh: Special customized mesh holes (such as trapezoidal and combination holes), suitable for niche scenarios (such as precision instrument protection).

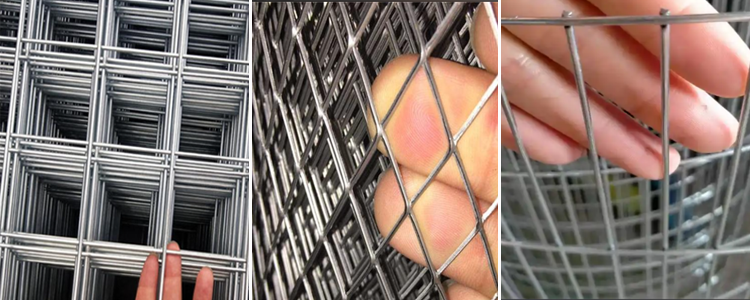

    welded wire mesh

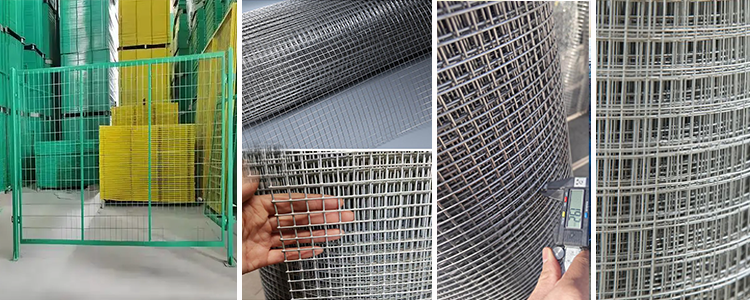

    Product real-shot pictures

    wire mesh
    steel mesh )

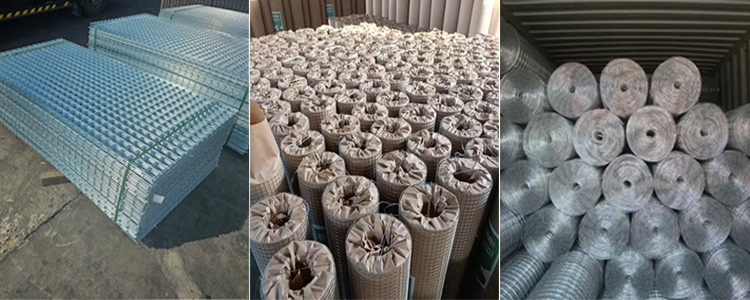

    Packaging and shipping
    steel mesh package

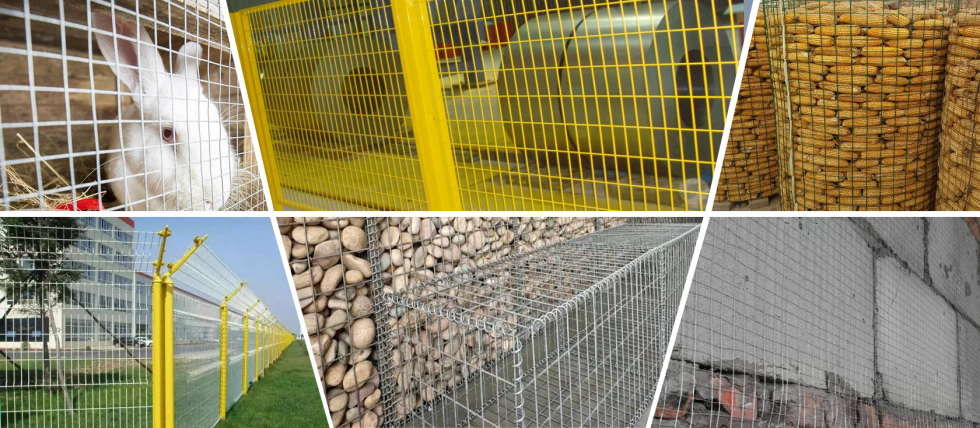

    Production Application

    steel mesh application1
    Welded steel wire mesh is widely used in fields such as construction, protection, aquaculture, and agriculture due to its diverse characteristics
    1. In the field of construction engineering:
    Hang a net before plastering brick and concrete walls and lightweight partition walls to prevent wall cracking;
    Underfloor heating reinforcement;
    Structural reinforcement:steel mesh for bridges, tunnels, and floor slabs, replacing traditional binding steel bars;
    2. Guardrail protection field
    Highway/railway guardrails: isolate lanes from the outside world to prevent pedestrians and animals from entering;
    Factory/community fence:Divide the area boundary to prevent theft and intrusion;
    Balcony/staircase protection: prevent children and objects from falling;
    3. Breeding and agricultural fields
    Poultry farming: isolation and captive breeding of poultry such as chickens, ducks, and rabbits;
    Aquaculture: Fencing of fish ponds and shrimp ponds to prevent fish from jumping out or natural enemies (such as egrets) from entering;
    Agricultural planting: greenhouse film fixation, vine crops (grapes, cucumbers) climbing brackets;
    4. Industry and other fields
    Equipment protection: Safety protection for rotating equipment such as machine tools and motors to prevent hand contact;
    Warehouse isolation: the division of goods between warehouse shelves to avoid mixing;
    Decoration scene: indoor partitions, ceiling decoration (such as restaurants, exhibition halls).
